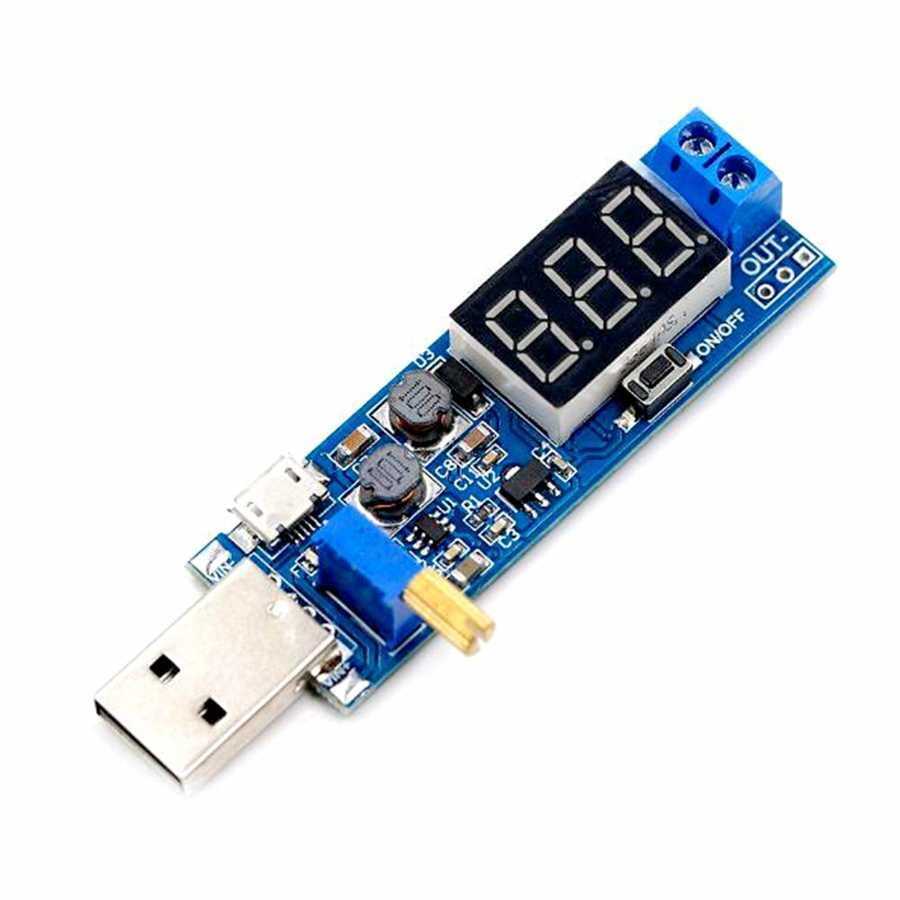

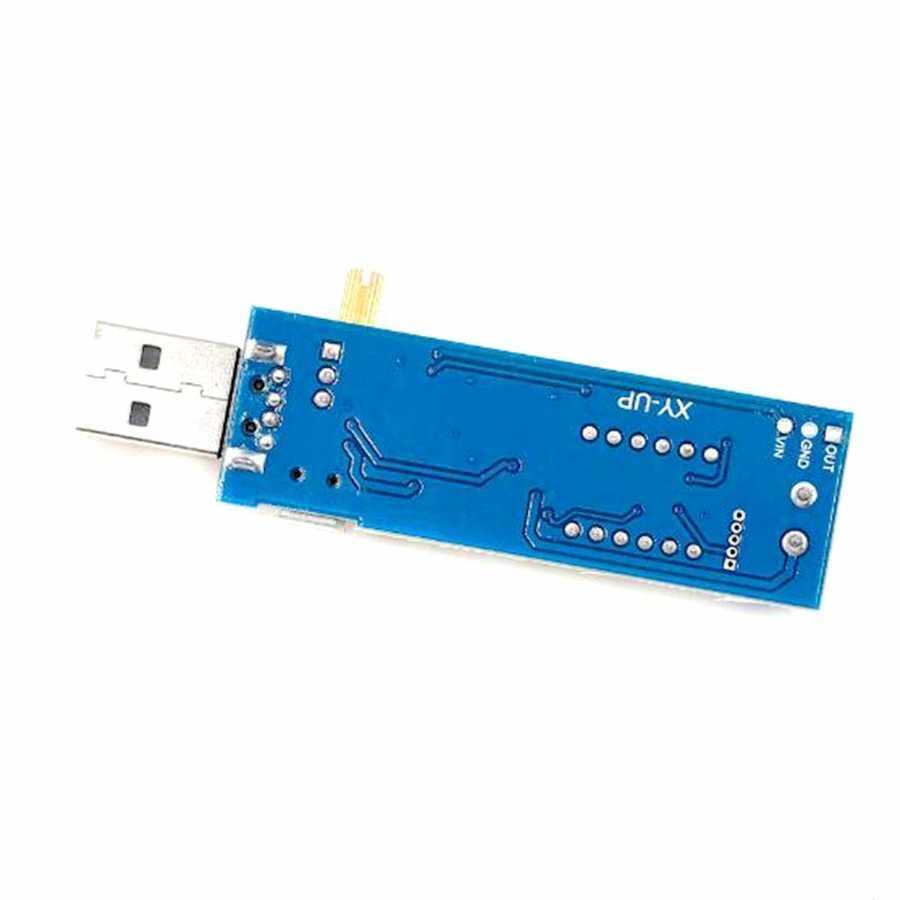

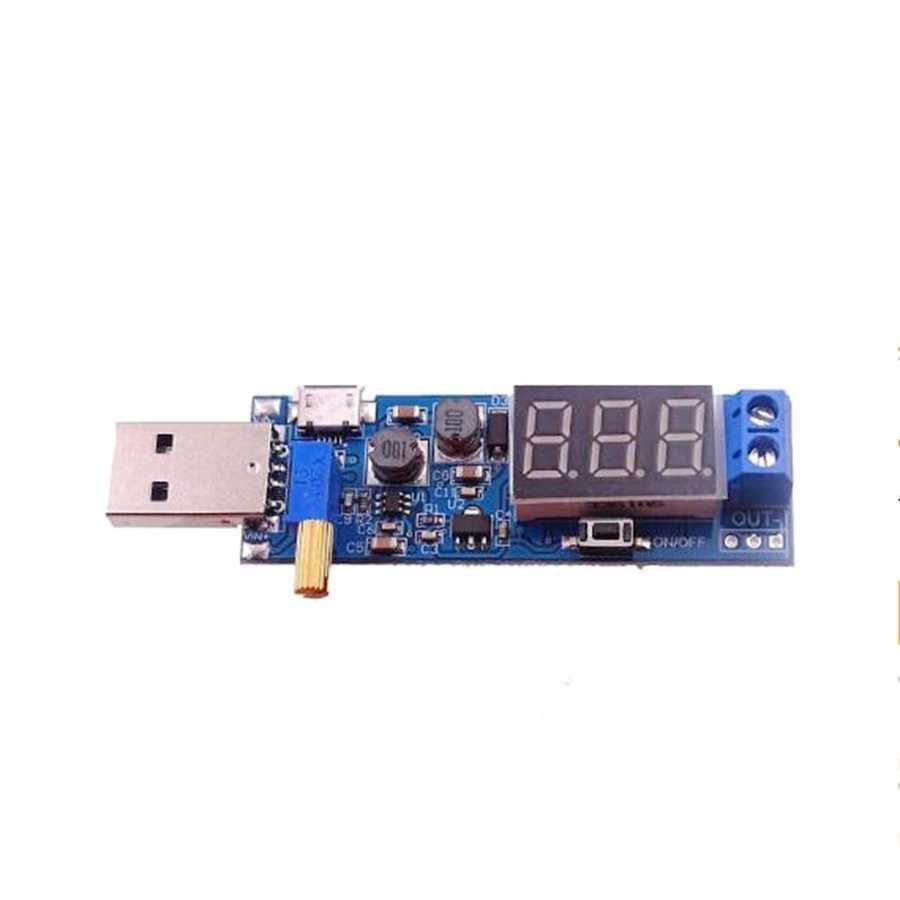

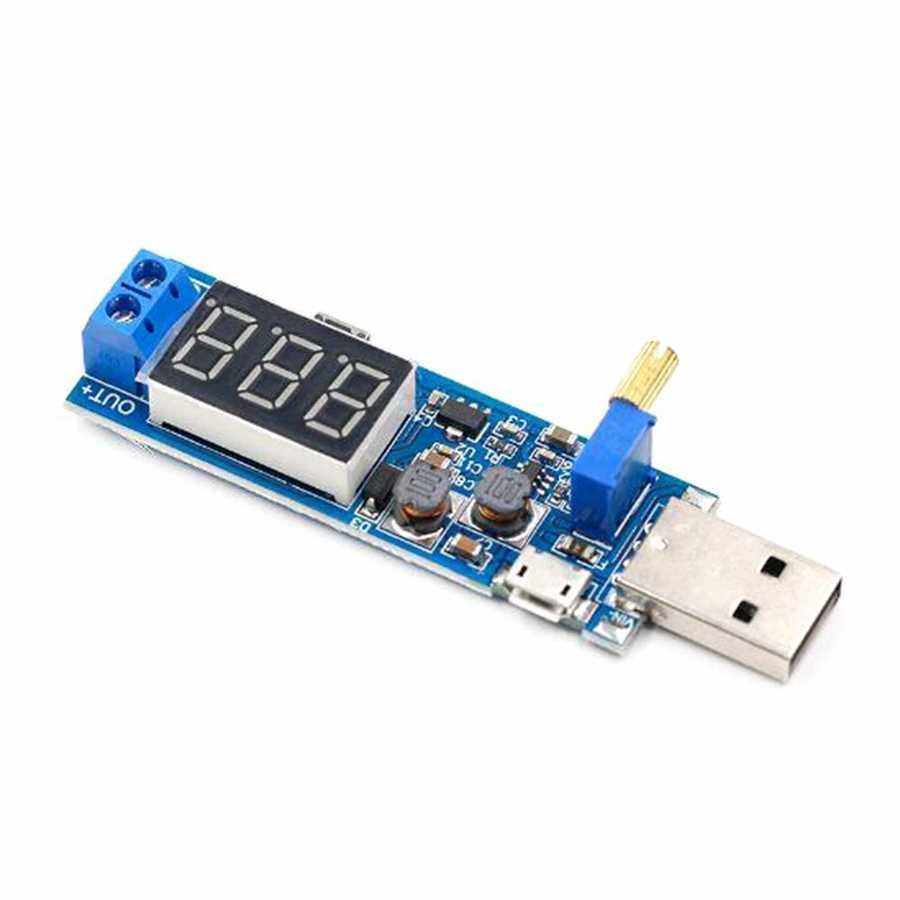

USB Güçlendirici Gerilim Regülatörü (5V to 3.3V-24V)

USB boost/buck power supply module, powered by USB, adjust potentiometer to get the required voltage.

Features:

One button to turn off the output;

Supply ON/OFF display screen;

Support low power mode;

Support sleep mode;

Support both standard USB and Micro USB and pads input voltage;

Potentiometer with rotating handle.

Parameters:

Input voltage: DC 3.5-12V;

Output voltage:DC 1.2-24V;

Output power:

-Input 1.2-2V,output power within 2W;

-Input 2V-20V,output power within 3W;

-Input 20V-24V,output power with in 2.5W;

Display:3Bit digital tube display;

Size:80*20*14mm.

Use steps:

Input voltage from Standard USB or Micro USB or ‘VIN+’ and ‘VIN-’;

Turn ON display screen;

Adjust potentiometer to get the required voltage;

Connect load.

Application:

Ordinary power supply;

Battery charger;

LED drive power;

Instrument voltage display;

Test meter;

Circuit test;

Power conversion.

Please Note:

It is not a high power supply, please use it within the power range.
