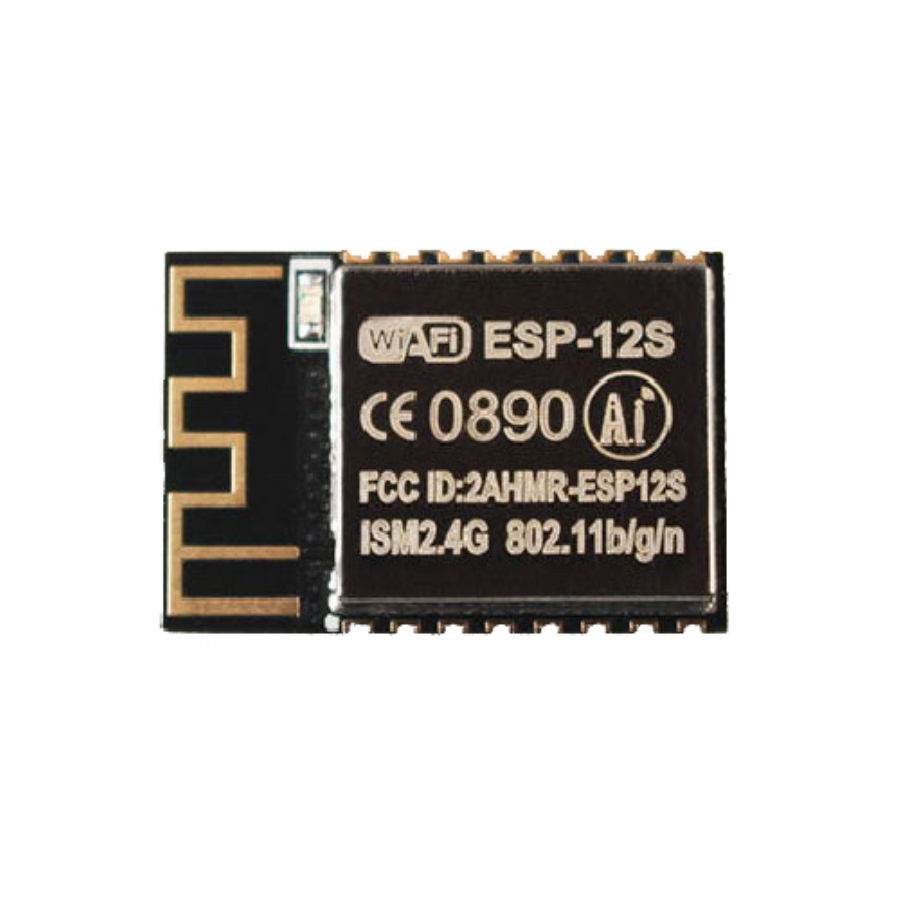

ESP-12S 802.11 b/g/n Wi-Fi Module

Teknik Özellikler:

• Marka: AI-THINKER
• The smallest 802.11b/g/n Wi-Fi SOC module
• Low power 32-bit CPU, can also serve as the application processor
• Up to 160MHz clock speed
• Built-in 10 bit high precision ADC
• Supports UART/HSPI/IIC/PWM/ADC
• SMD-16 package for easy welding
• Integrated Wi-Fi MAC/BB/RF/PA/LNA
• Deep sleep current as low as 20uA
• Embedded lwIP protocol stack
• Supports STA/AP/STA + AP operation mode
• Support Smart Config/AirKiss technology
• UART baudrate up to 4Mbps
• General AT commands can be used quickly
• Supports remote firmware upgrade (FOTA)
• Package : SMD-16

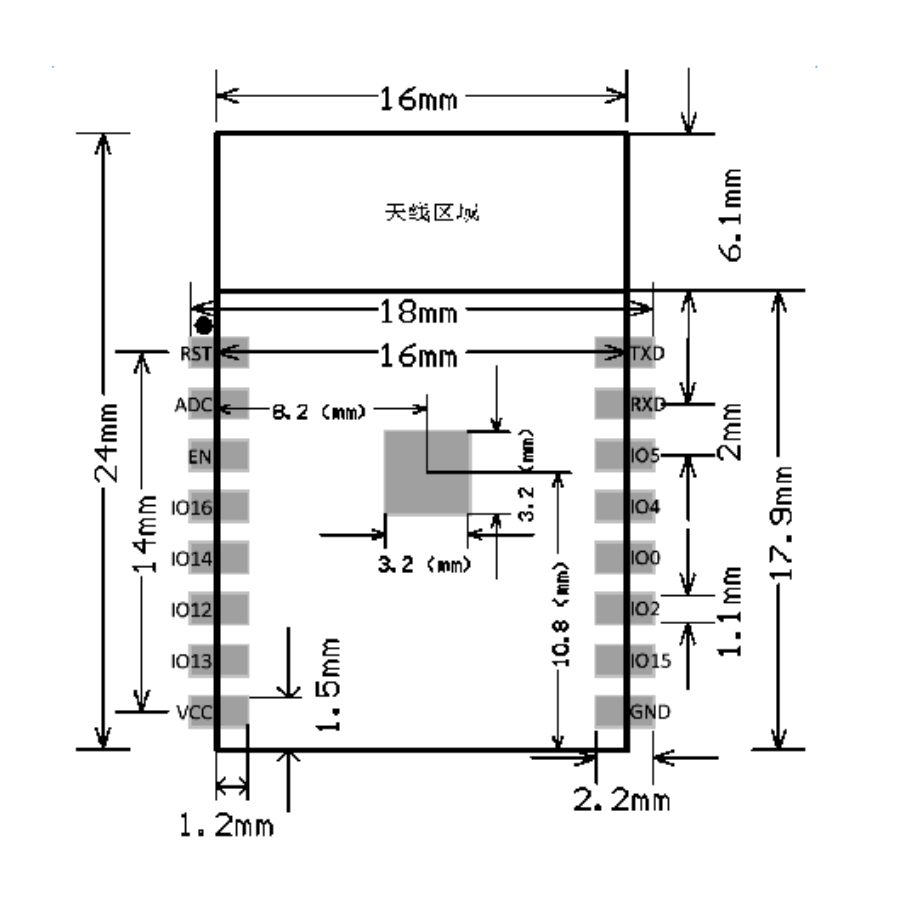

• Size : 24*16*3 (±0.2)mm
• SPI Flash :Default 32Mbit
• Interface : UART/HSPI/IIC/PWM/ADC
• Frequency Range : 2412 ~ 2484MHz
• Antenna : PCB antenna, 2 dBi
• Power Supply : Voltage 3.0V ~ 3.6V , Current >300mA
• Certification : FCC , CE
• Datasheet

Ürün İçeriği:

• 1 Adet ESP-12S 802.11 b/g/n Wi-Fi Module
