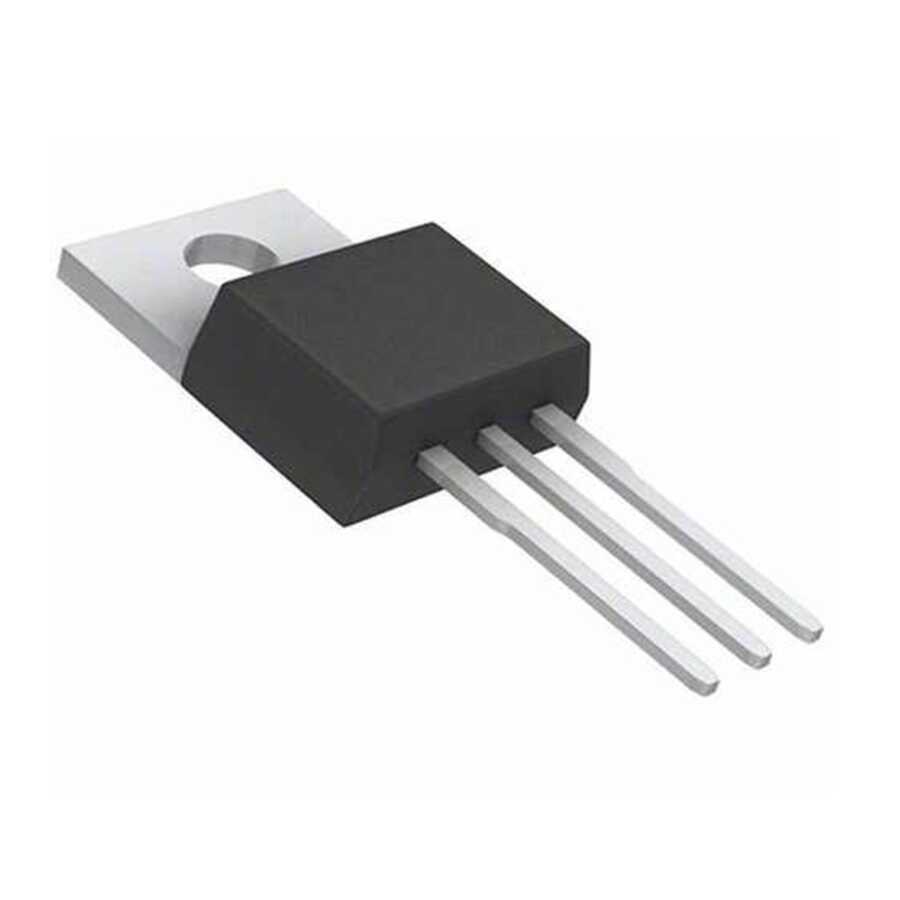

IRF9Z24N P Kanal Mosfet - TO220 - 55V - 12A

Teknik Özellikler:

• Type Designator: IRF9Z24N
• Type of Transistor: MOSFET
• Type of Control Channel: P -Channel
• Maximum Power Dissipation (Pd): 45 W
• Maximum Drain-Source Voltage |Vds|: 55 V
• Maximum Gate-Source Voltage |Vgs|: 10 V
• Maximum Drain Current |Id|: 12 A
• Maximum Junction Temperature (Tj): 150 °C
• Total Gate Charge (Qg): 12.7 nC
• Maximum Drain-Source On-State Resistance (Rds): 0.175 Ohm
• Package: TO220AB

Ürün İçeriği:

• 1 Adet IRF9Z24N P Kanal Mosfet - TO220 - 55V - 12A
