Stokta Yok
Stokta yok ikonu Stok Durumu:   Yok

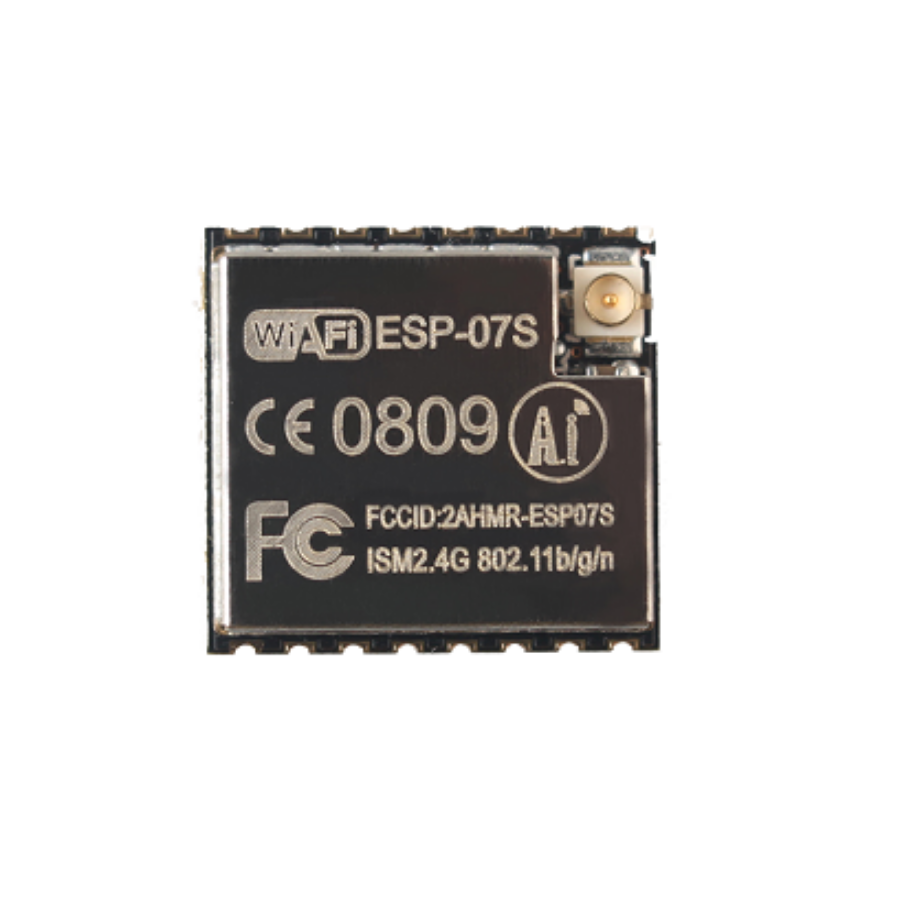

ESP-07S 802.11 b/g/n Wi-Fi SOC Module

Marka : Ai-thinker Ürün Kodu : R000785
113,35 TL + KDV
Havale/EFT Fiyatı: 131,94 TL %3 İndirim!
136,02 TL
Şu an stok bulunmamaktadır.

Stok durumunu sorgulamak için İletişim sayfamızdan bizimle iletişime geçebilirsiniz.
Kampanya
  • Ürün Özellikleri

  • Ödeme Seçenekleri

  • Yorumlar

  • Tavsiye Et

  • Resimler

  • Öneri Kutusu

  • ESP-07S wifi kablosuz haberleşme modülüdür.

    Teknik Özellikler:

    • Marka: AI-THINKER
    • The smallest 802.11b/g/n Wi-Fi SOC module
    • Low power 32-bit CPU, can also serve as the application processor
    • Up to 160MHz clock speed
    • Built-in 10 bit high precision ADC
    • Supports UART/GPIO/IIC/PWM/ADC
    • SMD-16 package for easy welding
    • Integrated Wi-Fi MAC/BB/RF/PA/LNA
    • Deep sleep current as low as 20uA
    • Embedded lwIP protocol stack
    • Supports STA/AP/STA + AP operation mode
    • Support Smart Config/AirKiss technology
    • UART baudrate up to 4Mbps
    • General AT commands can be used quickly
    • Supports remote firmware upgrade (FOTA)
    • Package : SMD-16

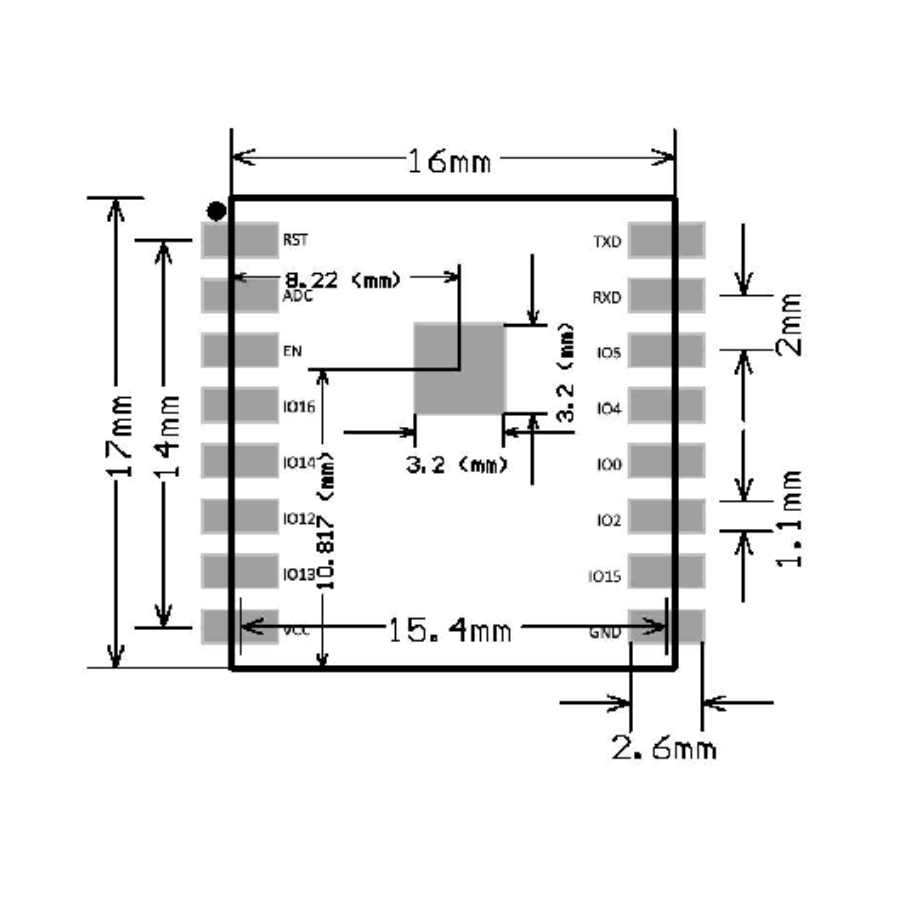

    • Size : 17*16*3 (±0.1)mm
    • SPI Flash :Default 32Mbit

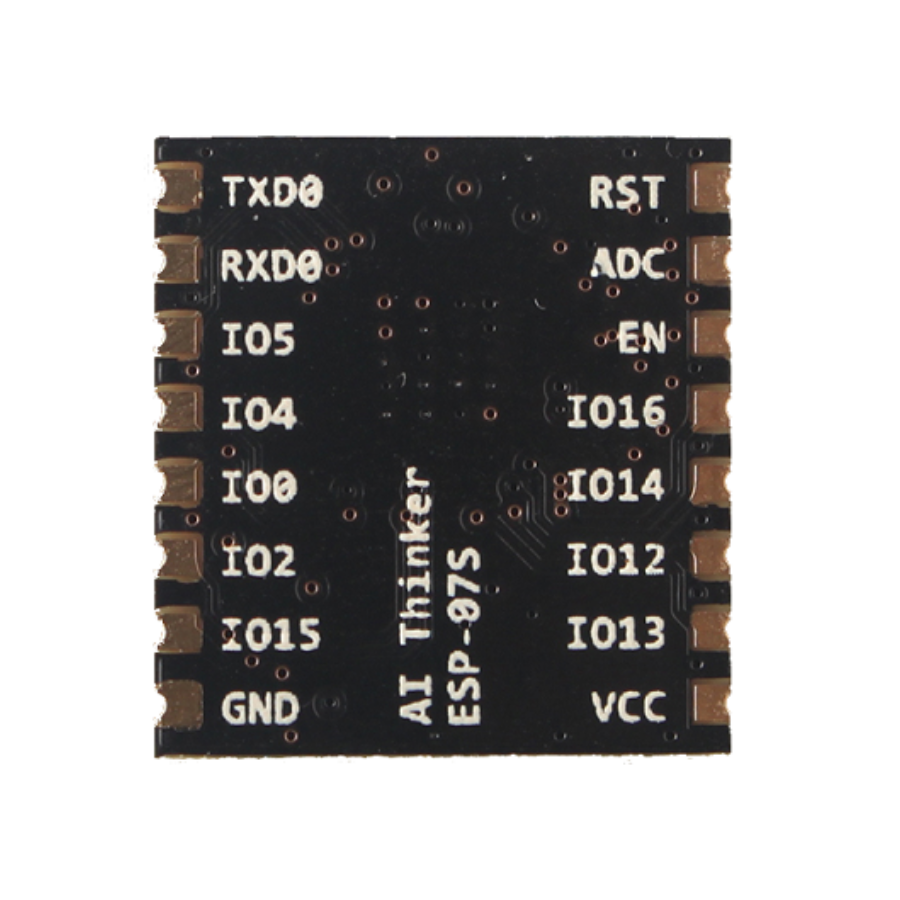

    • Interface : UART/GPIO/IIC/ADC/PWM
    • Frequency Range : 2412 ~ 2484MHz
    • Antenna : IPEX
    • Power Supply : Voltage 3.0V ~ 3.6V , Current >300mA
    • Certification : FCC , CE
    • Datasheet

    Ürün İçeriği:

    • 1 Adet ESP-07S 802.11 b/g/n Wi-Fi SOC Module
